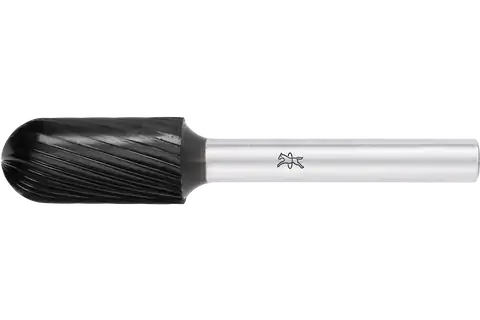

Tungsten carbide high-performance burr cylindrical with radius end WRC dia. 12x25 mm shank dia. 6 mm Z3 HICOAT coated universal medium

Technical information

Cut: 3 HC-FEP
Dia. external: 12 mm
Dia. shank: 6 mm
Length, cut: 25 mm
Length, total: 65 mm
RPM, grey cast iron, white cast iron: 16000 - 20000 RPM
RPM, hard non-ferrous metals: 9000 - 12000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 9000 - 12000 RPM
RPM, high-temperature-resistant materials: 9000
RPM, rust and acid-resistant steels: 9000 - 12000 RPM
RPM, steels up to 1,200 N/mm²: 16000 - 20000 RPM
Packaging unit: 1 piece

Description

Cut 3 with high-quality HICOAT coating HC-FEP is especially well suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its good stock removal rate. It also allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Cylindrical burr with radius end according to DIN 8032 with cut conforming to DIN 8033. Combination of cylindrical and ball-shaped geometries.

Special features

High-quality HICOAT coating for high hardness and wear resistance.
Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
Long tool life.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Bronze; Cast iron; Cast steel; Cobalt-based alloys; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Drive spindle; Flexible shaft drive; Straight grinder; Tool machine

Downloads

Cylindrical shape with radius end WRC Z3 HC-FEP

Tungsten carbide high-performance burr cylindrical with radius end WRC dia. 12x25 mm shank dia. 6 mm Z3 HICOAT coated universal medium

WRC 1225/6 Z3 HC-FEP
