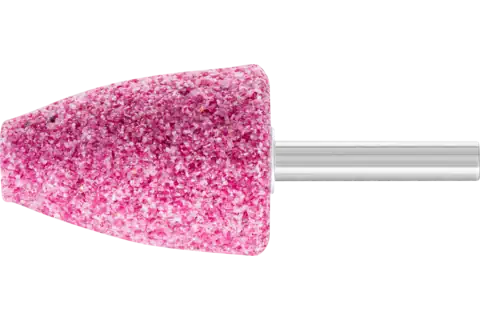

CAST STEEL mounted point conical dia. 35x50 mm shank dia. 8 mm A24 for cast steel

Matching accessories & spare parts

Dressing stones single-sided

Dressing stones single-sided SE 1203050 CU 30 R 5 V

Dressing stones double-sided

Dressing stones double-sided SE 1203050 CU 30/60 R 5 V

Dressing stones single-sided

Dressing stones single-sided SE 702212 CU 46 M 5 V

Diamond dresser

Diamond dresser 400 B

Technical information

CAST STEEL mounted point conical dia. 35x50 mm shank dia. 8 mm A24 for cast steel

Dia. external: 35 mm
Dia. shank: 8 mm
Grit size: 24
Length, shank: 40
Max. RPM: 15600 RPM
RPM, optimum: 15600 RPM
Width: 50 mm
Packaging unit: 50 pieces

Description

The CAST STEEL design is particularly well-suited to rough general work on cast steel.

It is ideal for removing burrs on cast steel parts and for grinding of intersections after separating risers.

The conical shape KE is designed for a comfortable working position during surface grinding and grinding of chamfers.

Special features

Very high grinding performance and aggressiveness from the start.
High stock removal rate in combination with a long tool life.
Delivered in practical industrial packaging.

Recommendations for use

CAST STEEL mounted points perform best at a cutting speed of 25 to 40 m/s.

Safety notes

The maximum permitted rotational speed relates to the unsupported shank length of 10 mm.

Materials that can be worked: Cast steel

Applications: Deburring; Finishing; Grinding out; Grouting; Leveling; Surface work; Working on edges (chamfering, rounding); Work on weld seams

Drive types: Flexible shaft drive; Straight grinder

Downloads

safety-pdf-cat-3-de-en.pdf

wzh-26-catalogue-3-web-en-uk.pdf
