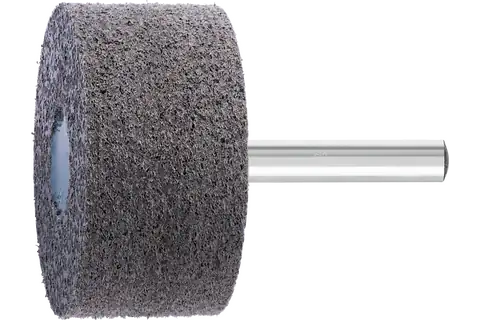

POLINOX pressed non-woven grinding point cylindrical shape PNER dia. 50x25 mm shank dia. 6 mm soft A coarse for finishing

Technical information

Abrasive: Aluminium oxide A
Dia. external: 50 mm
Dia. shank: 6 mm
Grit size: G (coarse)
Length, shank: 40
Max. RPM: 15300 RPM
RPM, optimum: 9500 RPM
Shape: ZY
Version: W (soft)
Width: 25 mm
Packaging unit: 5 pieces

Description

POLINOX grinding points PNER consist of multiple heavily compressed, non-woven layers, which are bonded together by a special grain/resin system. The different combinations of compression, fibres, grain and the appropriate bond result in non-woven products that offer a very good surface finish, high stock removal rate and long tool life. These tools can be used for a wide range of work on surfaces, from relatively coarse grinding to preparing the surface for polishing.

The version for straight grinders is particularly suitable for working on fillet welds and hard-to-reach contours or indentations.

Multiple heavily compressed, non-woven layers, which are bonded together by a special grain/resin system. The aluminium oxide A version is ideal for general-purpose applications on steel and non-ferrous metals.

The cylindrical shape ZY is ideal for grinding bores, radii and contours.

Special features

Particularly suitable for hard-to-reach indentations and contours.
High economic efficiency due to high abrasive performance and long tool life.
Produces very good surface quality.
Can be profiled as desired, enabling optimal adjustment to the contour.

Recommendations for use

For the best results, use at a recommended cutting speed of 10-20 m/s. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
Considerably reduce cutting speed for work on materials with poor heat-conducting properties, e.g. titanium and stainless steel.

Safety notes

For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Aluminium; Brass; Bronze; Cast steel; Cobalt-based alloys; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Titanium; Titanium alloys

Applications: Cleaning; Deburring; Roughening; Step-by-step fine grinding; Structuring (matt finishing, brush matting and satin finishing); Surface work; Work on weld seams

Drive types: Drive spindle; Flexible shaft drive; Straight grinder

Downloads

Mounted points POLINOX PNER

POLINOX pressed non-woven grinding point cylindrical shape PNER dia. 50x25 mm shank dia. 6 mm soft A coarse for finishing

PNER-W ZY 5025/6 A G
