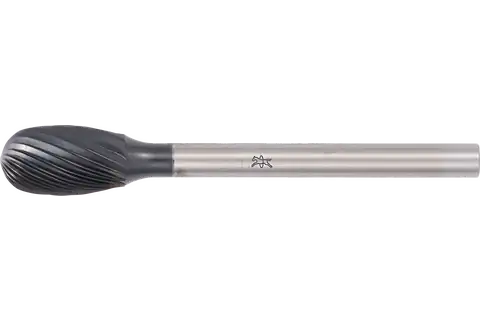

Tungsten carbide high-performance burr oval TRE dia. 06x10 mm shank dia. 3 mm Z5 HICOAT coated universal fine

Technical information

Cut: 5 HC-FEP
Dia. external: 6 mm
Dia. shank: 3 mm
Length, cut: 10 mm
Length, total: 40 mm
RPM, hard non-ferrous metals: 24000 - 32000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 24000 - 32000 RPM
RPM, high-temperature-resistant materials: 24000 - 40000 RPM
RPM, rust and acid-resistant steels: 24000 - 32000 RPM
RPM, steels up to 1,200 N/mm²: 32000 - 40000 RPM
Radius corner design: 2.8 mm
Packaging unit: 1 piece

Description

Cut 5 with high-quality HICOAT coating HC-FEP is especially well suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It produces good surfaces and allows for a longer tool life and use at higher cutting speeds in comparison with uncoated burrs.

Oval burr according to DIN 8032 with cut conforming to DIN 8033.

Special features

High-quality HICOAT coating for high hardness and wear resistance.
Good surface quality.
Long tool life.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Materials that can be worked: Bronze; Case-hardened steels; Cast steel; Cobalt-based alloys; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Work on weld seams

Drive types: Automated centres; Flexible shaft drive; Straight grinder; Tool machine

Downloads

Oval shape TRE Z5 HC-FEP

Tungsten carbide high-performance burr oval TRE dia. 06x10 mm shank dia. 3 mm Z5 HICOAT coated universal fine

TRE 0610/3 Z5 HC-FEP
