Shank diameter 6 mm KSK-WKN

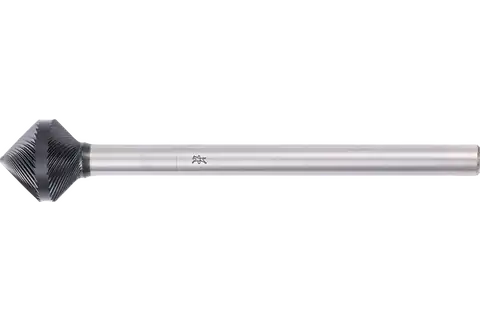

TC high-perf. burr KSK-WKN dia. 16x15 mm shank dia. 6x75 mm Z5 HICOAT coated special shape chamfering/deburring work in robot applications

KSK-WKN 1615/6 Z5 90°HC RS SL75

Item number:: 21460011
EAN:: 4007220724897

New

TC high-perf. burr KSK-WKN dia. 16x15 mm shank dia. 6x75 mm Z5 HICOAT coated special shape chamfering/deburring work in robot applications 1

Technical data Change variant

Retailers-Search

Choose options

Cut

3 HC-FEP 5 HC-FEP

Dia. external

10 mm 16 mm

Dia. shank

6 mm

Length, cut

11 mm 15 mm

Length, total

86 mm 90 mm

Reset Filter

Technical information

TC high-perf. burr KSK-WKN dia. 16x15 mm shank dia. 6x75 mm Z5 HICOAT coated special shape chamfering/deburring work in robot applications

Angle: 90 °
Cut: 5 HC-FEP
Dia. external: 16 mm
Dia. shank: 6 mm
Length, cut: 15 mm
Length, total: 90 mm
RPM, hard non-ferrous metals: 7000 - 9000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 5000 - 7000 RPM
RPM, high-temperature-resistant materials: 7000 - 12000 RPM
RPM, rust and acid-resistant steels: 5000 - 7000 RPM
RPM, steels up to 1,200 N/mm²: 9000 - 12000 RPM
Packaging unit: 1 piece

Description

Cut 5 is especially well-suited to fine machining of cast iron, steel, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It achieves a good surface.

Special burr shape for robot applications. The combination of conical counterbore shape and tapered shape enables hard-to-reach components to be optimally deburred and chamfered in just one operation.

Special features

High-quality HICOAT coating for high hardness and wear resistance.
Good surface.
Less programming needed due to fewer tool changes.

Materials that can be worked: Bronze; Case-hardened steels; Cast steel; Cobalt-based alloys; Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels

Applications: Chamfering; Countersinking; Deburring; Milling; Surface work; Working on edges; Working on edges (chamfering, rounding)

Drive types: Automated centres; Drive spindle; Robot; Straight grinder; Tool machine
