Shank diameter 6 mm KZW

TC high-performance burr cut 3 KZW dia 12x25mm shank dia 6mm HICOAT coated special shape chamfering/deburring work in robot applications

KZW 1225/6 Z3 HC RS

Item number:: 21460000
EAN:: 4007220536469

TC high-performance burr cut 3 KZW dia 12x25mm shank dia 6mm HICOAT coated special shape chamfering/deburring work in robot applications 1

TC high-performance burr cut 3 KZW dia 12x25mm shank dia 6mm HICOAT coated special shape chamfering/deburring work in robot applications 2

TC high-performance burr cut 3 KZW dia 12x25mm shank dia 6mm HICOAT coated special shape chamfering/deburring work in robot applications 3

TC high-performance burr cut 3 KZW dia 12x25mm shank dia 6mm HICOAT coated special shape chamfering/deburring work in robot applications 4

Technical data Change variant

Retailers-Search

Choose options

Cut

3 MICRO

Dia. external

12 mm

Dia. shank

6 mm

Length, cut

25 mm

Length, total

65 mm

Reset Filter

Technical information

TC high-performance burr cut 3 KZW dia 12x25mm shank dia 6mm HICOAT coated special shape chamfering/deburring work in robot applications

Angle: 60 °
Cut: 3
Dia. external: 12 mm
Dia. shank: 6 mm
Length, cut: 25 mm
Length, total: 65 mm
RPM, grey cast iron, white cast iron: 12000
RPM, hard non-ferrous metals: 7000 - 9000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 7000 - 12000 RPM
RPM, high-temperature-resistant materials: 7000 - 12000 RPM
RPM, rust and acid-resistant steels: 7000 - 12000 RPM
RPM, soft non-ferrous metals: 12000 - 20000 RPM
RPM, steels up to 1,200 N/mm²: 12000 - 16000 RPM
Packaging unit: 1 piece

Description

Cut 3 is especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate and achieves a good surface.

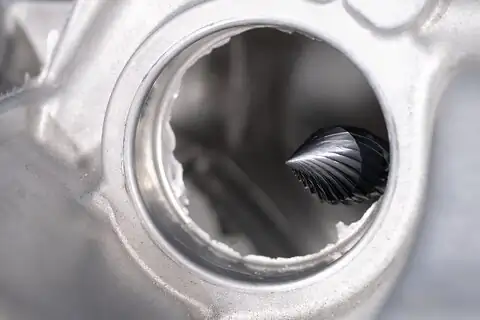

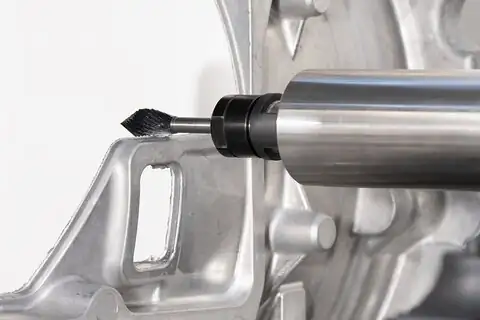

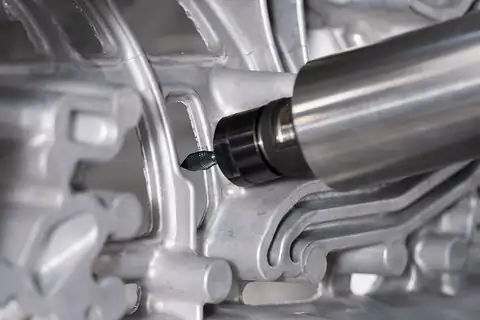

Special burr shape for robot applications. The combination of various burr shapes enables hard-to-reach components to be optimally deburred and chamfered in just one operation. The burrs achieve a very high stock removal rate thanks to the high-quality HICOAT coating.

Special features

High-quality HICOAT coating for a much higher stock removal rate.
Good surface.
Less programming needed due to fewer tool changes.

Materials that can be worked: Brass; Bronze; Case-hardened steels; Cast iron; Cast steel; Cobalt-based alloys; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hard aluminium alloys; Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Cutting out holes; Deburring; Leveling; Milling; Milling out; Surface work; Working on edges; Working on edges (chamfering, rounding)

Drive types: Drive spindle; Robot; Straight grinder
