Shank diameter 6 mm ZYA KGL

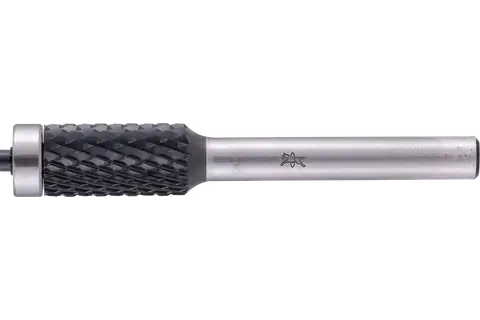

TC high-perf. burr cylindrical ZYA dia. 10x19 mm shank dia. 6 mm Z4 HICOAT coated ball bearing chamfer/deburring work robot applications

ZYA 1019/6 C4 HC RS KGL

Item number:: 21460016
EAN:: 4007220724965

New

TC high-perf. burr cylindrical ZYA dia. 10x19 mm shank dia. 6 mm Z4 HICOAT coated ball bearing chamfer/deburring work robot applications 1

Technical data Change variant

Retailers-Search

Choose options

Cut

4 HC-FEP ALU HC-NFE MICRO HC-FEP

Dia. external

10 mm

Dia. shank

6 mm

Length, cut

19 mm

Length, total

65 mm

Reset Filter

Technical information

TC high-perf. burr cylindrical ZYA dia. 10x19 mm shank dia. 6 mm Z4 HICOAT coated ball bearing chamfer/deburring work robot applications

Cut: 4 HC-FEP
Dia. external: 10 mm
Dia. shank: 6 mm
Length, cut: 19 mm
Length, total: 65 mm
RPM, hard non-ferrous metals: 8000 - 11000 RPM
RPM, hardened, heat-treated steels over 1,200 N/mm²: 8000 RPM
RPM, high-temperature-resistant materials: 8000 - 14000 RPM
RPM, rust and acid-resistant steels: 11000 RPM
Packaging unit: 1 piece

Description

Cut 4 is especially well-suited to machining of stainless steel (INOX), steel and high-temperature-resistant materials such as nickel-based and cobalt-based alloys. It is characterized by its high stock removal rate with short chips and achieves a good surface.

Cylindrical burr with ball bearing for deburring and cleaning in robot applications.

Special features

Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
Good tool life.
Good surface.
The ball bearing provides optimum contour guidance and protects the workpiece against damage during milling.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Bronze; Case-hardened steels; Cast iron; Cast steel; Cobalt-based alloys; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Hard non-ferrous metal; Nickel-based alloys (e.g. Inconell and Hastelloy); Stainless steel (INOX); Steel; Steel, cast steel; Steels up to 700 N/mm² (< 220 HB); Titanium; Titanium alloys; Tool steels; White annealed cast iron (GTW, GJMW)

Applications: Chamfering; Countersinking; Deburring; Leveling; Milling; Surface work; Working on edges; Working on edges (chamfering, rounding); Work on weld seams

Drive types: Automated centres; Robot; Straight grinder; Tool machine
