Air-powered chipping hammers and accessories

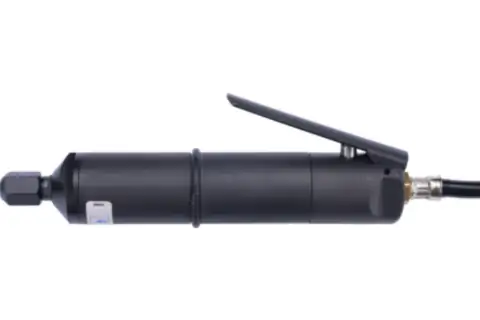

PH 8/90 HV
Item number:
80708501
EAN:
4007220737057
New
PH 8/90 HV 1
PH 8/90 HV 2
PH 8/90 HV 1
PH 8/90 HV 2
Technical data
Login / Register
Retailers-Search
Technical information
Air consumption, at idle
0.09 m³/min
Air consumption, under load
0.09 m³/min
Exhaust direction
front
Exhaust hose internal dia.
6 mm
Height
40 mm
Length
210 mm
Max. operating pressure
6.3 bar
Net weight
1.45 kg
Number of oil drops [min]
1 pcs.
Oil viscosity
22-32 cSt
Uncertainty K - Vibration
0.3 m/s²
Uncertainty K - noise
3 db(A)
Vibration emission values ah/ah, SG
2.5 m/s²
Width
40 mm
Packaging unit
1 piece
Description

The chipping hammer is suitable for all tungsten carbide chisels. It features a chisel mounting with union nut.

The exhaust air flow of the chipping hammer is at the front.

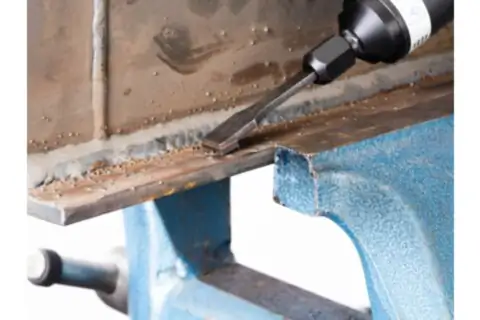

The chipping hammer is particularly suitable for cleaning coatings and is often used to remove weld slag and paint and for concrete cleaning work.
Advantages
  • Low vibrations.
  • Ideal for hard-to-reach areas or small surfaces.
  • Safe working using dead man's switch.
  • Compact, easy-to-handle grinder.
Safety notes
  • The drive must be operated with the specified number of oil droplets in order to prevent premature malfunctioning.
  • The use of steel nozzles is required to ensure the safe operation of air hammers.
Contents
  • 1.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI).
Downloads
wzh25-catalogue-9-web-int-en.pdf katalog-9-update-2022-web-en.pdf
