Air-powered chisel hammers and accessories

PH 13 F EG03
Item number:
80300030
EAN:
4007220736586
New

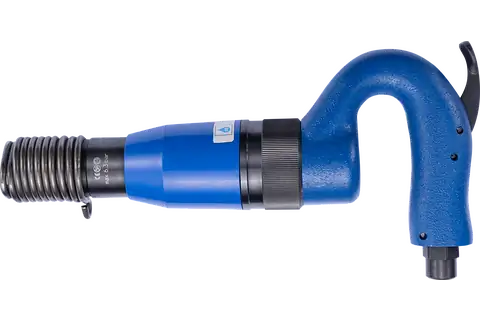

PH 13 F EG03 1
PH 13 F EG03 1
Technical data
Login / Register
Retailers-Search
Technical information
Air consumption, at idle
0.3 m³/min
Air consumption, under load
0.3 m³/min
Chisel holder
Spring
Exhaust direction
front
Frequency
4.400
Height
131.5 mm
Insertion group
EG03
Length
230 mm
Max. operating pressure
6.3 bar
Min. ø supply air hose inside
10 mm
Net weight
1.3 kg
Number of oil drops [min]
5 drops
Oil viscosity
22-32 cSt
Silencer
Steel
Stroke length
40 mm
Uncertainty K - Vibration
0.3 m/s²
Uncertainty K - noise
3 db(A)
Version
Fist grip open
Vibration emission values ah/ah, SG
7 m/s²
Width
50 mm
Packaging unit
1 piece
Description

The air hammer with fist grip has the exhaust air flow at the front. It falls into the category of lightweight pneumatic chisel hammers up to 3.4 kg. The drive is equipped with a mounting for chisel tools.

The lightweight pneumatic chisel hammers from PFERD TOOLS are ideal for cleaning foundry products, light construction work and automotive bodywork – for example, for cutting open flanged seams or weld seams. Thanks to their light impact, finely adjustable striking power and low recoil, combined with round guide bushings, they are also ideally suited to light to very light riveting work. Furthermore, their low weight makes them the perfect choice for renovation work at height.

The chisel hammer with exhaust directed to the front and steel silencer is suitable for all chisels in insertion group EG03 and features a chisel holding spring to hold the chisels.
Advantages
  • Can be activated at three bar or above.
  • A sophisticated overall concept makes the chisel hammers high-performance and versatile.
  • Open fist grip ensures ideal handling.
Ordering notes
  • The drive is supplied without an air supply hose or nozzle.
Safety notes
  • The drive must be operated with the specified number of oil droplets in order to prevent premature malfunctioning. The use of steel nozzles is required to ensure the safe operation of air hammers.
Contents
  • 1x chisel holding spring MHF 31-R, 1x damping ring DR D14X8.
