Air-powered chisel hammers and accessories

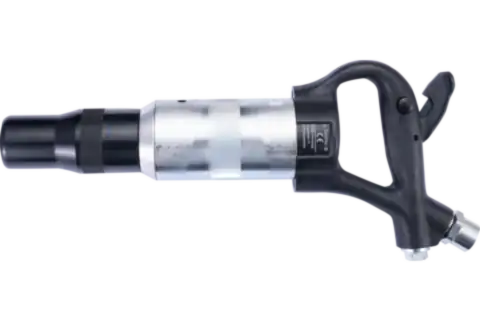

PH 66 F-SK EG08
Item number:
80300160
EAN:
4007220737033
New
Technical information

Air consumption, at idle
0.4 cfm
Air consumption, under load
0.4 cfm
Chisel holder
Screw cap
Exhaust direction
front
Frequency
1.930
Height
190 mm
Insertion group
EG08
Length
430 mm
Max. operating pressure
6.3 bar
Min. ø supply air hose inside
13 cm
Net weight
6.6 kg
Number of oil drops [min]
5 drops
Oil viscosity
22-32 cSt
Silencer
Metal
Stroke length
95 mm
Uncertainty K - Vibration
0.3 m/s²
Uncertainty K - noise
3 db(A)
Version
Fist grip closed
Vibration emission values ah/ah, SG
6.1 m/s²
Width
75 mm
Packaging unit
1 piece
Description

The air hammer with fist grip has the exhaust air flow at the front. It falls into the category of pneumatic chisel hammers up to 6.6 kg and is suitable for heavy-duty use. The drive is equipped with a mounting for chisel tools.

Chisel hammers with a metal silencer from PFERD TOOLS feature exceptional vibration damping. An integrated air cushion protects against wear during idle strokes – even at an operating pressure of up to 9 bar. The robust design is also ideal for use in hot and smelting operations. High-quality precision tool for skimming off molten metal as well as for breaking out and cleaning converters, casting ladles, induction furnaces, cupola furnaces and crucibles.

The chisel hammer with exhaust directed to the front and metal silencer is suitable for all chisels in insertion group EG08 and features a protective cap instead of a chisel holding spring to hold the chisels. Suitable for hot and melting applications.

Advantages
  • Can be activated at three bar or above.
  • Vibration- and noise-damped.
  • Durable thanks to robust design.
  • Safe working due to reliable lock system.
  • Closed fist grip ensures ideal handling.
Ordering notes
  • The drive is supplied without an air supply hose or nozzle.
Safety notes
  • The drive must be operated with the specified number of oil droplets in order to prevent premature malfunctioning. The use of steel nozzles is required to ensure the safe operation of air hammers.
Contents
  • 1x screw cap SK PH 66 F-SK, 1x damping ring D24.7X45.
