Air-powered needle scalers and accessories

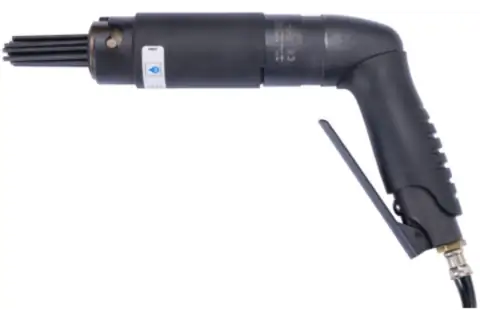

PN 19 P

Item number:: 80600310
EAN:: 4007220737552

New

Technical data

Retailers-Search

Technical information

Air consumption, at idle: 0.11 m³/min
Air consumption, under load: 0.11 m³/min
Exhaust direction: front
Height: 165 mm
Length: 290 mm
Max. operating pressure: 6.3 bar
Min. ø supply air hose inside: 10 mm
Needle diameter: 3.2 mm
Needle length: 140 mm
Net weight: 2.4 kg
Number of needles: 19 pcs.
Number of oil drops [min]: 5 drops
Oil viscosity: 22-32 cSt
Uncertainty K - Vibration: 0.3 m/s²
Uncertainty K - noise: 3 db(A)
Version: Pistol grip
Vibration emission values ah/ah, SG: 3.7 m/s²
Width: 50 mm
Packaging unit: 1 piece

Description

The air-powered needle scaler with fist grip has the exhaust air flow at the front.

Air-powered needle scalers are the ideal solution for thorough removal of rust, scale, dirt, loose paint and concrete residues from metal and other robust surfaces. Typical applications range from metalworking and renovation to concrete work and preparing for painting and coating. Air-powered needle scalers are used in particular for derusting on ships, agricultural machines or construction equipment. They also demonstrate their strengths when it comes to cleaning mixers or derusting in hard-to-reach places.

The needle scaler with comfortable pistol grip removes rust, scale, paint, dirt and concrete residues from metal and other surfaces. The drive is particularly suitable for coatings and solid metal parts as the abrupt needle movements are designed for robust materials.

The drive has a needle mounting.

Advantages

Suitable needle scaler for the needle set with 19 needles.
Low vibrations.
Ideal for hard-to-reach areas or small surfaces.

Contents

1.5 m air supply hose with 1/4" male threaded connection and threaded quick coupling (STGI), spare needle set ENS-PN 19 P-140 mm.
