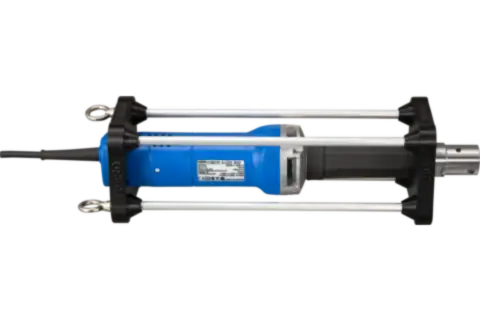

Electric motor for flexible shafts

EMER 8/280 BW
Item number:
85206402
EAN:
4007220495742
EMER 8/280 BW 1
EMER 8/280 BW 1
Technical data
Login / Register
Retailers-Search
Technical information
Connection coupling [DIN]
10
Height
120 mm
Length
455 mm
Net weight
2.5 kg
Power consumption
750 watts
Power output
410 watts
Rotational speed range
8.500 - 28.000 RPM
WEEE reg. no.
55553582
Width
120 mm
Packaging unit
1 piece
Description

Drive systems with DIN 10/DIN 15 are multi-speed machines. They cover a wide rotational speed range and have stepless electronic adjustment to match individual tool requirements. The drives have very high drive outputs. They can also be used with compact handpieces or extensions to work in difficult-to-reach areas. The drives with rigid extensions are excellent solutions for customer-specific applications.

The flexible shaft drive with DIN 10 connection has stepless rotational speed regulation.

Drive with 230 V.
Advantages
  • Stepless rotational speed regulation.
  • Digital electronics for maintaining a constant rotational speed.
  • Overload protection.
  • Smooth start-up to protect people, tools and the drive.
  • Pipe stand protects the drive.
Ordering notes
  • The drive is supplied without flexible shaft, please order separately.
Contents
  • 4 m power cable with mains connector for the UK, 2 keys (STS D 4 mm).
PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends the drive for working for long periods with low levels of fatigue.
