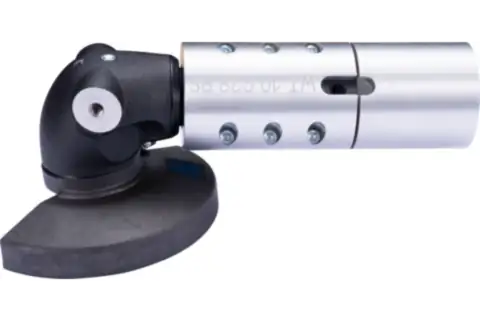

Robot spindles for stationary applications

WT 10 G28 RS

Item number:: 87100989
EAN:: 4007220756119

New

Technical data

Retailers-Search

Technical information

Dia. external: 98 mm
Handpiece-side coupling G: 28
Handpiece-side coupling dia. [mm]: 28 mm
Height: 98 mm
Length: 240 mm
Max. RPM: 18000 RPM
Net weight: 1.788 kg
Oil viscosity: 22-32 cSt
Rotational speed range: 750 - 18.000 RPM
Tool mounting centre hole dia.: 22.23 mm
Transmission ratio: 1,53 : 1
Version: Flexible shaft system 10
Width: 60 mm
Packaging unit: 1 piece

Description

Angle drive for stationary applications. Can be connected to all flexible shafts with G28 thread (instead of the handpiece). Connection to flexible shaft can be pivoted 360°. With M14 spindle thread and dia. 22.23 mm tool mounting.

Advantages

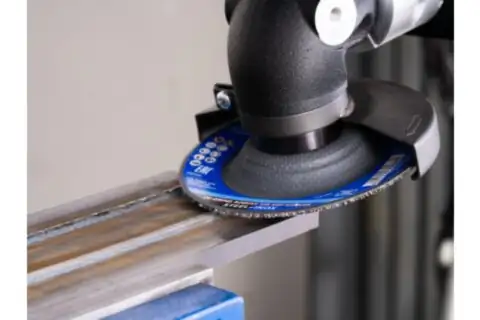

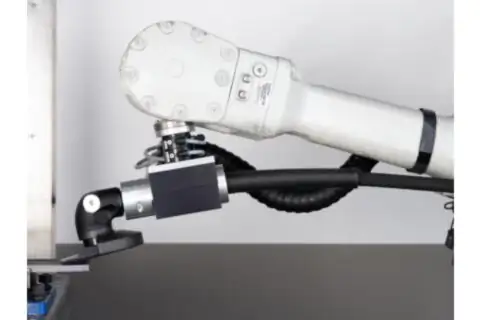

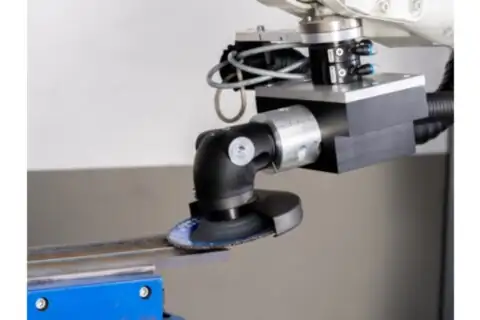

Enables flexible shaft drives to be used as angle grinders in robot cells.
With maximum tool diameter up to 125 mm.
The connection to the shaft can be pivoted 360°.

Contents

1 clamping nut (item no. 98980036), 2 flange screws (1x item no. 98980037, 1x item no. 98980038), 2 spacer sleeves (1x item no. 98980039, 1x item no. 98980040), 2 keys (1x STL SW 35 x 5 mm, 1x SKS SW 4 mm), guard dia. 125 mm, anti-vibration handle.
