Torus cutter Performance Hardened Steel with four cutting edges HC4H, radius corner design – metric

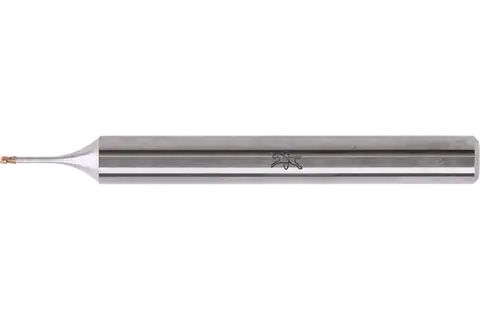

Solid carbide end mill dia. 3mm,4 cutting edges,RE 0.5mm APMX 3.5mm,LU 8mm,LF 57mm,TiAlSiN coating,HA shank dia. 6mm,Perf. Hardened Steel

SCM-HC4H-M030R05-S8-57HA6 HP40

Item number:: 23001393
EAN:: 4007220869062

New

Solid carbide end mill dia. 3mm,4 cutting edges,RE 0.5mm APMX 3.5mm,LU 8mm,LF 57mm,TiAlSiN coating,HA shank dia. 6mm,Perf. Hardened Steel 1

Solid carbide end mill dia. 3mm,4 cutting edges,RE 0.5mm APMX 3.5mm,LU 8mm,LF 57mm,TiAlSiN coating,HA shank dia. 6mm,Perf. Hardened Steel Youtube

Technical data

Retailers-Search

Technical information

Solid carbide end mill dia. 3mm,4 cutting edges,RE 0.5mm APMX 3.5mm,LU 8mm,LF 57mm,TiAlSiN coating,HA shank dia. 6mm,Perf. Hardened Steel

Coating: TiAlSiN
Corner radius RE: 0.5 mm
Corner type: Radius corner design
Cutting diameter DC: 3 mm
Cutting edge count ZEFP: 4 pcs.
Cutting material: HP40
Depth of cut maximum APMX: 3.5 mm
Feed direction: x,y
Functional length LF: 57 mm
Helix angles: 30°
Internal coolant: no
Length, working LU: 8 mm
Neck diameter DN: 2.9 mm
Norm: Company standard
Shank diameter DCON: 6 mm
Shank type: HA (DIN6535)
Tolerance corner radius TRE: +/-0,01
Tolerance for shank diameter TCDCON: h5
Version: 90° with radius
Packaging unit: 1 piece

Cutting Data Calculator

The use of optimum cutting data is a key success factor for productive milling and drilling processes. Our cutting data calculator has an intuitive user interface, enabling you to quickly and easily calculate the machining parameters you need for your application and the material you are working on.

Unit of measurement

Machining

Material

Radial depth of cut (a_e)

Axial depth of cut (a_p)

Results

Description

By combining a material-specific tool geometry and state-of-the-art coatings, the Performance Hardened Steel solid tungsten carbide end mills are ideal for machining components made of hardened steels and high-strength materials in mould and die making.

Mill for pre-machining and semi-finishing in hardened steels up to 60 HRC.

Smooth straight shank HA in accordance with DIN 6535.

Special features

Perfectly coordinated product range for everything from roughing to fine finishing in mould and die making.
Maximum precision when machining complex workpiece geometries.
Modern tool coating for a long tool life and optimum temperature control when working on materials that are difficult to machine.
A wide range of variants with different combinations of diameters, lengths and corner radii for a variety of applications.
Design with neck chip channel.

Recommendations for use

Observe the recommended cutting data.
Ensure stable workpiece and tool clamping to achieve best performance.

Materials that can be worked: Annealed cast iron; Black annealed cast iron (GTS, GJMB); Brass; Case-hardened steels; Cast iron; Cast steel; Copper; Ductile cast iron; Ferrite (magnetic material); Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Roller-bearing and ball-bearing steels; Steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels over 700 N/mm² (> 220 HB); Steels up to 1,200 N/mm² (< 38 HRC); Steels up to 700 N/mm² (< 220 HB); Tool steels

Applications: Milling

Drive types: Automated centres
