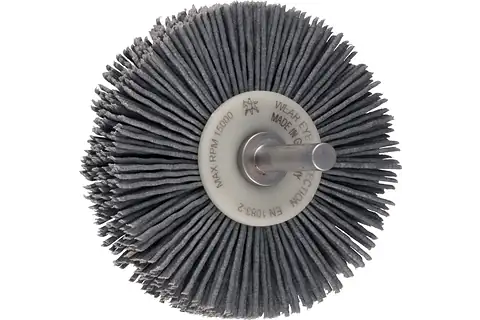

RBUIT 7015/6 SIC 180 0,90 KS

Technical information

Dia. external: 70 mm
Dia. filament material: 0.9 mm
Dia. shank: 6 mm
Filament material: Silicon carbide (SiC)
Grit size: 180
Length, filament: 19 mm
Length, total: 50 mm
Max. RPM: 15000 RPM
Mounting system: Shank
Packaging: Industrial packaging
RPM, optimum: 6.000 - 9.800 RPM
Width: 15 mm
Packaging unit: 10 pieces

Description

Generally suitable for cleaning, deburring, and removal of heat discolouration.

In addition to brushes with a stainless steel filament, PFERD TOOLS also offers brushes for work on stainless steel (INOX) with the INOX-TOTAL type. They are particularly well-suited to use in extremely critical environments.

In the case of brushes with plastic filament and plastic side plates, all components are made from non-rusting materials.

Advantages

Maximum protection against corrosion as all components are produced from stainless steel (INOX) in quality 1.4310/1.4301 (V2A).
Highly flexible, enabling optimal adjustment to the workpiece contour.
Plastic side plate prevents damage and contamination in the event of workpiece contact.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.

Safety notes

When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.

Materials that can be worked: Aluminium; Bronze; Cast iron; Cast steel; Cobalt-based alloys; Other non-ferrous metals; Stainless steel (INOX); Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Thermosetting plastics; Wood

Applications: Cleaning; Deburring; Roughening; Structuring (matt finishing, brush matting and satin finishing)

Drive types: Flexible shaft drive; Power drill; Straight grinder

Downloads

Wheel brushes crimped INOX-TOTAL, shank-mounted

RBUIT 7015/6 SIC 180 0,90 KS
