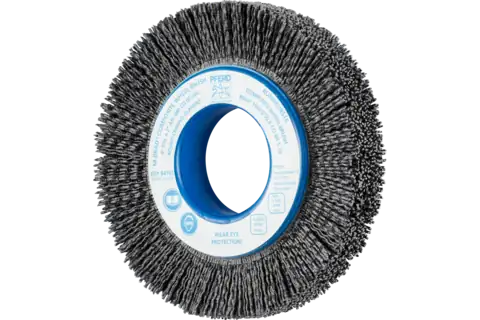

COMPOSITE wheel brush RBUP dia. 150x25x50.8 mm hole ceramic filament dia. 1.10 mm grit 80 stationary

Technical information

COMPOSITE wheel brush RBUP dia. 150x25x50.8 mm hole ceramic filament dia. 1.10 mm grit 80 stationary

Dia. external: 150 mm
Dia. filament material: 1.1 mm
Dia. hole: 50.8 mm
Filament material: Ceramic oxide grain (CO)
Grit size: 80
Length, filament: 32 mm
Max. RPM: 3600 RPM
Mounting system: Centre hole
Packaging: Industrial packaging
RPM, optimum: 900 - 1500 RPM
Width: 25 mm
Packaging unit: 1 piece

Description

Particularly aggressive brush. Its plastic filament makes this product particularly suitable for deburring complicated components such as cylinder heads or gear toothing, as well as for working on surfaces. Developed specially for industrial use.

Composite brushes from PFERD TOOLS have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected.

Brushes with ceramic oxide grain (CO) offer good toughness and excellent sharpness. For high stock removal values and aggressive brushing behaviour.

Plastic filament withstands temperatures up to 220 °C.

Special features

Long tool life and aggressive brushing effect due to a very high filament density.
Extremely smooth operation due to even distribution of the filament material.
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
For particularly aggressive machining and for giving the workpiece a high surface quality.

Recommendations for use

Please observe the recommended rotational speeds.
The CO filament material is suitable for particularly aggressive machining and for giving the workpiece a high surface quality.
Use coolant for applications where large amounts of heat are produced.

Ordering notes

Please order adapter pairs APM 50.8 separately.

Materials that can be worked: Aluminium; Bronze; Cast iron; Cast steel; Cobalt-based alloys; Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Nickel or titanium-based superalloys; Other non-ferrous metals; Soft titanium alloys (tensile strength 500 N/mm²); Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Titanium; Titanium alloys

Applications: Cleaning; Deburring; Structuring (matt finishing, brush matting and satin finishing)

Drive types: Automated centres; Flexible shaft drive; Straight grinder; Tool machine

Downloads

Wheel brushes crimped Composite, with hole

COMPOSITE wheel brush RBUP dia. 150x25x50.8 mm hole ceramic filament dia. 1.10 mm grit 80 stationary

RBUP 15025/50,8 CO 80 1,10
