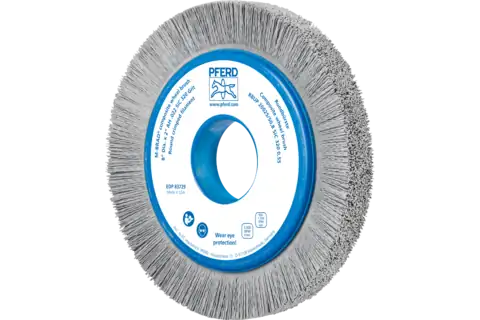

COMPOSITE wheel brush RBUP dia. 200x25x50.8 mm hole SiC filament dia. 0.55 mm grit 320 stationary

Technical information

COMPOSITE wheel brush RBUP dia. 200x25x50.8 mm hole SiC filament dia. 0.55 mm grit 320 stationary

Dia. external: 200 mm
Dia. filament material: 0.55 mm
Dia. hole: 50.8 mm
Filament material: Silicon carbide (SiC)
Grit size: 320
Length, filament: 32 mm
Max. RPM: 3600 RPM
Mounting system: Centre hole
Packaging: Industrial packaging
RPM, optimum: 900 - 1500 RPM
Width: 25 mm
Packaging unit: 1 piece

Description

Particularly aggressive brush. Its plastic filament makes this product particularly suitable for deburring complicated components such as cylinder heads or gear toothing, as well as for working on surfaces. Developed specially for industrial use.

Composite brushes from PFERD TOOLS have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected.

Brushes with silicon carbide (SiC) are particularly well suited to deburring work and surface improvement.

Plastic filament withstands temperatures up to 220 °C.

Special features

Long tool life and aggressive brushing effect due to a very high filament density.
Extremely smooth operation due to even distribution of the filament material.
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.

Recommendations for use

Please observe the recommended rotational speeds.
Use coolant for applications where large amounts of heat are produced.

Ordering notes

Please order adapter pairs APM 50.8 separately.

Materials that can be worked: Aluminium; Bronze; Cast iron; Cast steel; Cobalt-based alloys; Other non-ferrous metals; Stainless steel (INOX); Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Thermosetting plastics; Wood

Applications: Cleaning; Deburring; Roughening; Structuring (matt finishing, brush matting and satin finishing)

Drive types: Automated centres; Flexible shaft drive; Straight grinder; Tool machine

Downloads

Wheel brushes crimped Composite, with hole

COMPOSITE wheel brush RBUP dia. 200x25x50.8 mm hole SiC filament dia. 0.55 mm grit 320 stationary

RBUP 20025/50,8 SiC 320 0,55
